NPB Tong Cylinder Kit
Introducing a new generation that replaces the obsolete cylinder GA-30046526-01 (GM-Z 22/20, GA-306150, RM-306150).
Future-proof your production

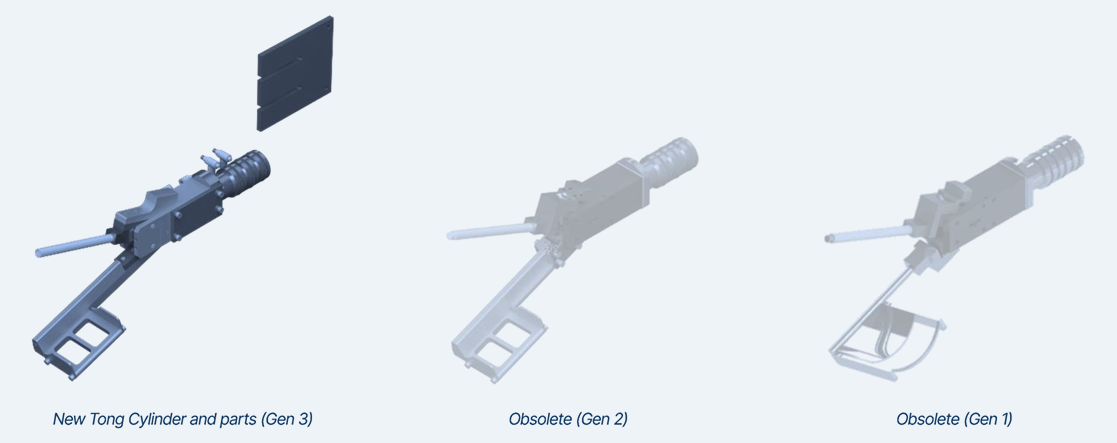

The existing Tong Cylinder will be discontinued and hence no longer be available for purchase. To ensure continued performance and serviceability, NPB now provides an upgrade kit compatible with both Gen 1 and Gen 2 models.

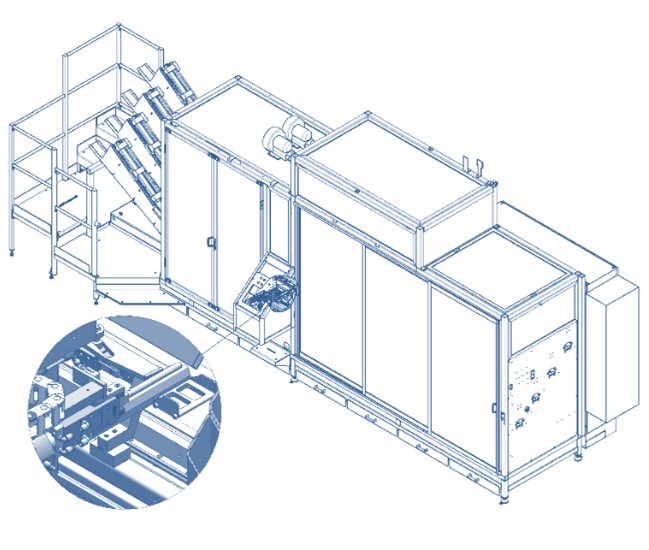

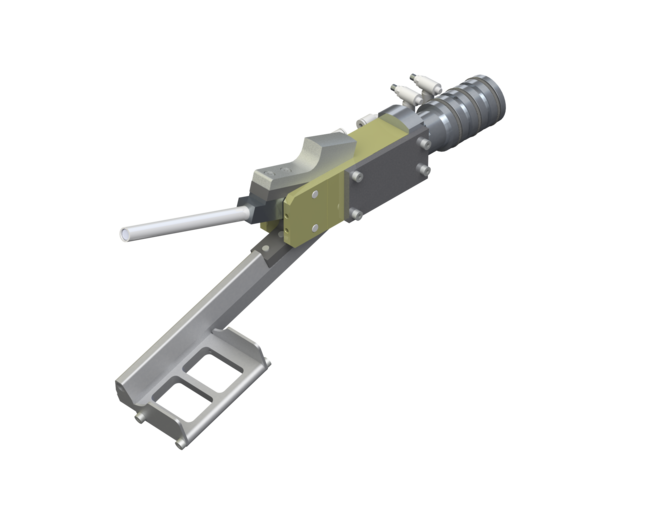

Installed in the NPB Baggers, the new-generation Tong Cylinder features an improved design with enhanced mounting, including easily accessible screws for faster and more convenient assembly. It’s a future-proof solution for your production line.
Technical details upgrade kit
The upgrade kit includes the new cylinder, swivel, air couplings, improved tong elements for easier maintenance, and shims.
Please note that installing the new model requires a dedicated mounting kit.
Technical specifications
-
Part numbers: Replacing: 12073390-10 Tong upgrade kit –Left and Right GA-30046526-01 (GM-Z 22/20, GA-306150, RM-306150) Recommended spare parts: GA-0303653 Radial gripper PRG 42-30 12230317-1 Mounting Revolvershaft 12230319-2 Spoon mounting Folding unit 52210318-7 Sidewall Folding unit 52210319-3 Flange spoon Folding unit 12071386-1 Flag Bagging module SV-4803220300 O-ring Fact Sheet PDF NPB Tong Cylinder Kit | NPB Bagger
