NPB Bagger for ends

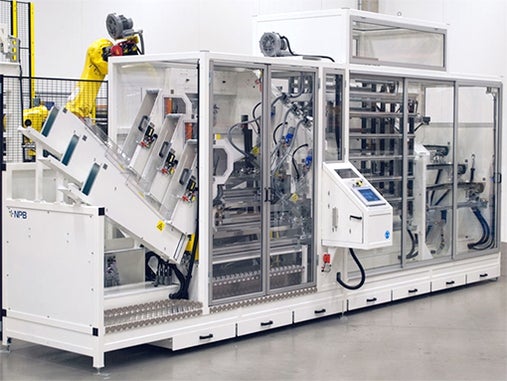

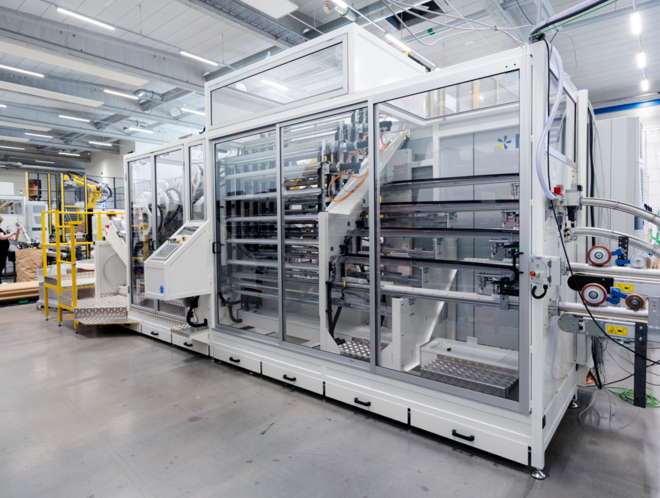

Our fully automatic solution for packaging of can ends in paper bags. The machine features a flexible modular design, which is easy to adapt to your production and layout. It can be made for handling one to four lanes.
Infeed
The ends are fed continuously into the machine, where they are counted and sorted into sticks.
Bag handling

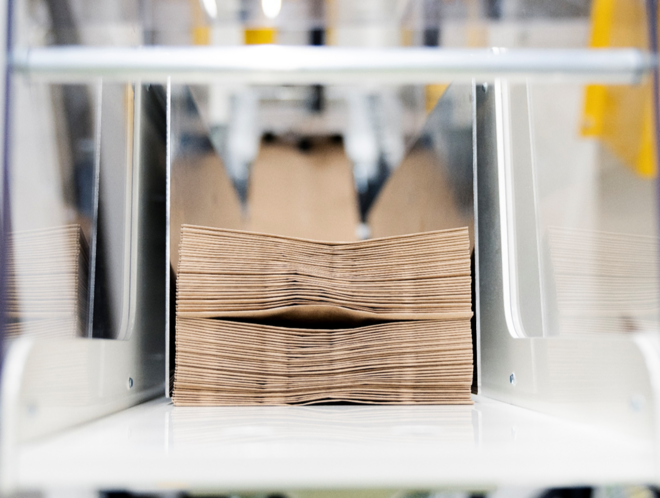

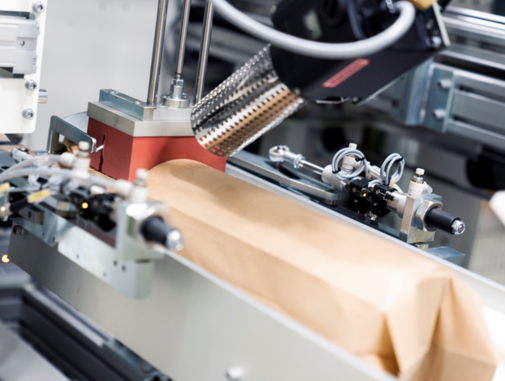

The stick of ends is fed into pre-made paper-bags. The bags are folded and sealed before they are discharged out from the bagger and onto a NPB palletizer.
Technical specification
-
Product data Capacity 4 bags per minute/lane Dimensions, product Ø50-200 mm (200-709 Bag length up to 1200 mm (47 ¼ in) Technical data Height 2500 mm (8,2 ft) Length 6500 mm (21 ft) Width 2000 mm (6,5 ft) Power 3x400-480 VAC/25 A, 50-60Hz Air pressure 3x400-480 VAC/25 A, 50-60Hz Control-system Allen-Bradley/Siemens -
Options Bag sealing with wet-tape ITU Buffer for stick of ends, STIB Left or right-handed layout Bag printer Fact sheet PDF NPB Bagger
