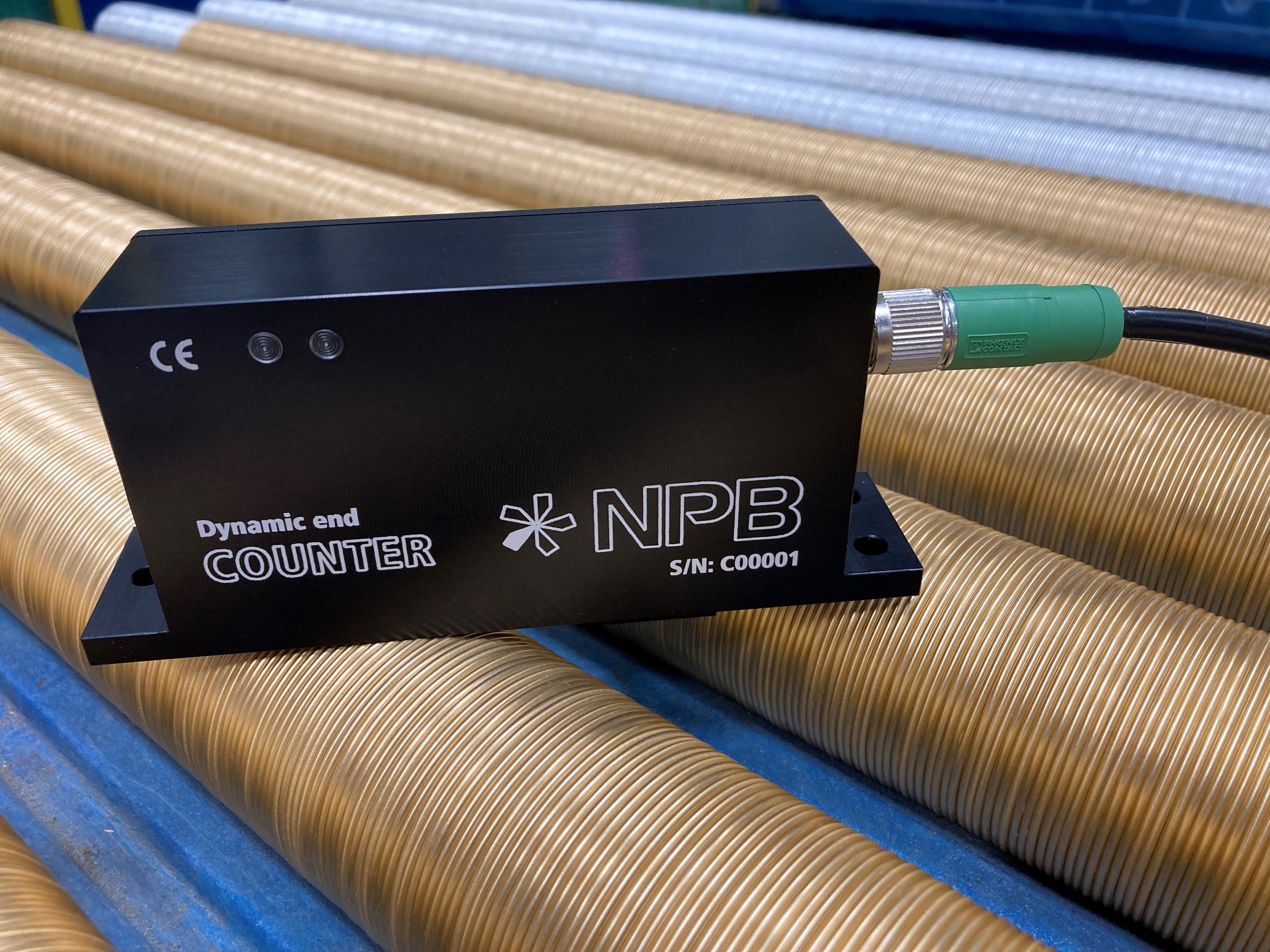

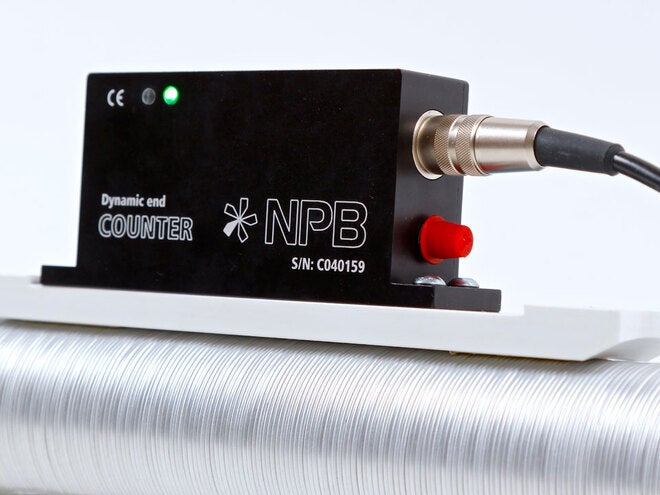

NPB dynamic end counter
This unique end counter with optical sensors is capable of precision counting of all types of ends – beverage, food, aerosol, EOE etc. It automatically adapts to any material/color changes in the end flow and can be used with any end handling equipment.
Exceptional accuracy
The NPB dynamic end counter keeps track of up to 12 000 ends per minute and automatically adapts to material and/or color changes. The accuracy is extremely high, with max 4/1 000 000 ends.
The device counts the exact number of ends even if the flow of ends stops, reverses, or shakes in front of the sensor.
It is easy to install and can be used with end handling equipment from any manufacturer.
Technical specifications
-
Product data Dimensions 120 x 34 x 60 mm (4,7 x 1,3 x 2,4 in) Material Anodized Aluminium Weight 400 gr (14,1 oz) Power supply 10-30 VDC, 0,2 A Protection class IP 54 Capacity, max counting speed 12 000 EPM (200 Hz) Product features DEC: A and/or B channel and inverted signals, pulse every 10 ends -
Fact sheet PDF NPB Dynamic End Counter V2
